适用范围

汽车、机车、电子、机械、运动器材、针车、射梢、陶瓷光纤等零组件之外径研磨。

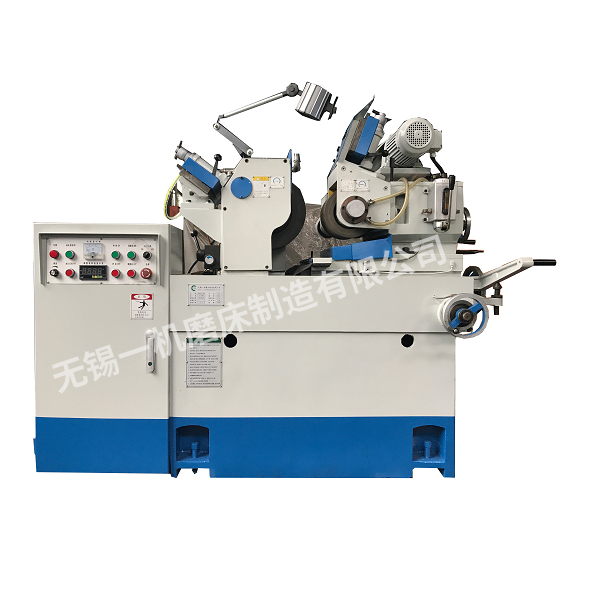

YJ-1206S型高精度无心磨床技术协议参数

标准工作台直径............................................................................1—35mm

研磨砂轮尺寸（外径*宽*内径）................................................305*150*120

调整砂轮尺寸（外径*宽*内径）.................................................205*150*90

研磨砂轮转速..................................................................................1950R.P.M

调整砂轮转速..................................................................................（16—330）R.P.M

                    ..................................................................................24—365 R.P.M

砂轮驱动马达....................................................................................71/2hp×4p

                    ....................................................................................[10hp×4p]

调整砂轮驱动马达............................................................................1hp×6p[3hp]

油压驱动马达....................................................................................1hp

冷却驱动马达....................................................................................1/8hp

调整砂轮进刀手轮.............................................................................每转3.5mm/revolution

                           ..............................................................每刻划0.02mm/each graduation

调整砂轮微调手轮：

工作台进刀手轮..........................................................................每转7mm/ revolution

                       ................................................................每刻划0.05mm/ each graduation

修整进刀手轮....................................................................每转1.5mm/ revolution

                    .................................................................每刻划0.01mm/ each graduation

调整轮倾斜角度.................................................................................+5°—-3°

调整轮旋转角度.................................................................................+-5°

机械尺寸...........................................................................................1800*1400*1450mm

Net weight..........................................................................................BLS-12

机械重量............................................................................................1700Kg

装箱重量.............................................................................................1850Kg

装箱尺寸..............................................................................................2350*1150*1770mm

圆度.....................................................................................................0.001mm

圆柱度.................................................................................................0.003mm
