适用范围
汽车、机车、电子、机械、运动器材、针车、射梢、陶瓷光纤等零组件之外径研磨。

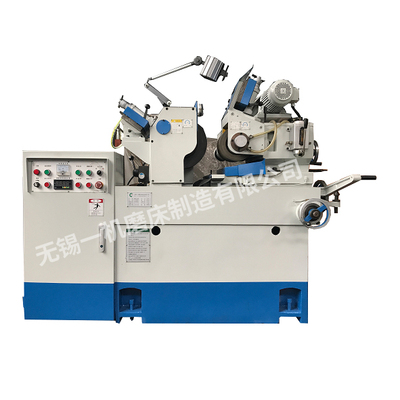

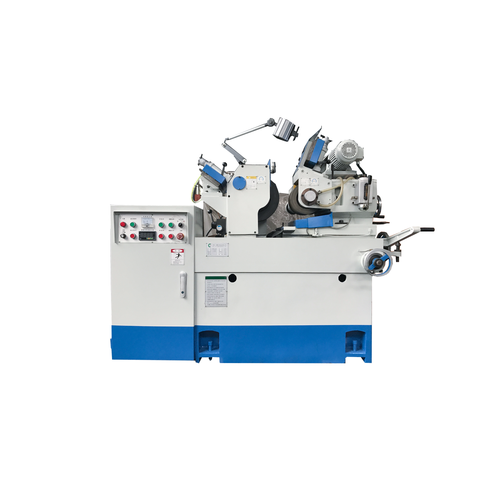

YJ-1206S型高精度无心磨床技术协议参数
标准工作台直径............................................................................1—35mm
研磨砂轮尺寸（外径*宽*内径）................................................305*150*120
调整砂轮尺寸（外径*宽*内径）.................................................205*150*90
研磨砂轮转速..................................................................................1950R.P.M
调整砂轮转速..................................................................................（16—330）R.P.M
..................................................................................24—365 R.P.M
砂轮驱动马达....................................................................................71/2hp×4p
....................................................................................[10hp×4p]
调整砂轮驱动马达............................................................................1hp×6p[3hp]
油压驱动马达....................................................................................1hp
冷却驱动马达....................................................................................1/8hp
调整砂轮进刀手轮.............................................................................每转3.5mm/revolution
..............................................................每刻划0.02mm/each graduation
调整砂轮微调手轮：
工作台进刀手轮..........................................................................每转7mm/ revolution
................................................................每刻划0.05mm/ each graduation
修整进刀手轮....................................................................每转1.5mm/ revolution
.................................................................每刻划0.01mm/ each graduation
调整轮倾斜角度.................................................................................+5°—-3°
调整轮旋转角度.................................................................................+-5°
机械尺寸...........................................................................................1800*1400*1450mm
Net weight..........................................................................................BLS-12
机械重量............................................................................................1700Kg
装箱重量.............................................................................................1850Kg
装箱尺寸..............................................................................................2350*1150*1770mm
圆度.....................................................................................................0.001mm
圆柱度.................................................................................................0.003mm
